Consider a common commercial property problem (an illustrative planning scenario rather than a specific client project): a medical group leases space in a modern suburban building set 120 feet back from a four-lane collector road. They invest in a crisp set of illuminated channel letters on the building façade. Yet patients repeatedly call the front desk from the next block over to say they drove right past the driveway. Between street trees, parked cars, and the deep building setback, drivers traveling at 35 mph never see the façade sign until they have already passed the curb cut.
When your building sits back from the roadway, shares a driveway in a multi-tenant plaza, or occupies a corner campus lot, wall-mounted signage cannot do the roadside job alone. You need a permanent landmark right at driver eye level where the turn decision happens: a commercial monument sign.

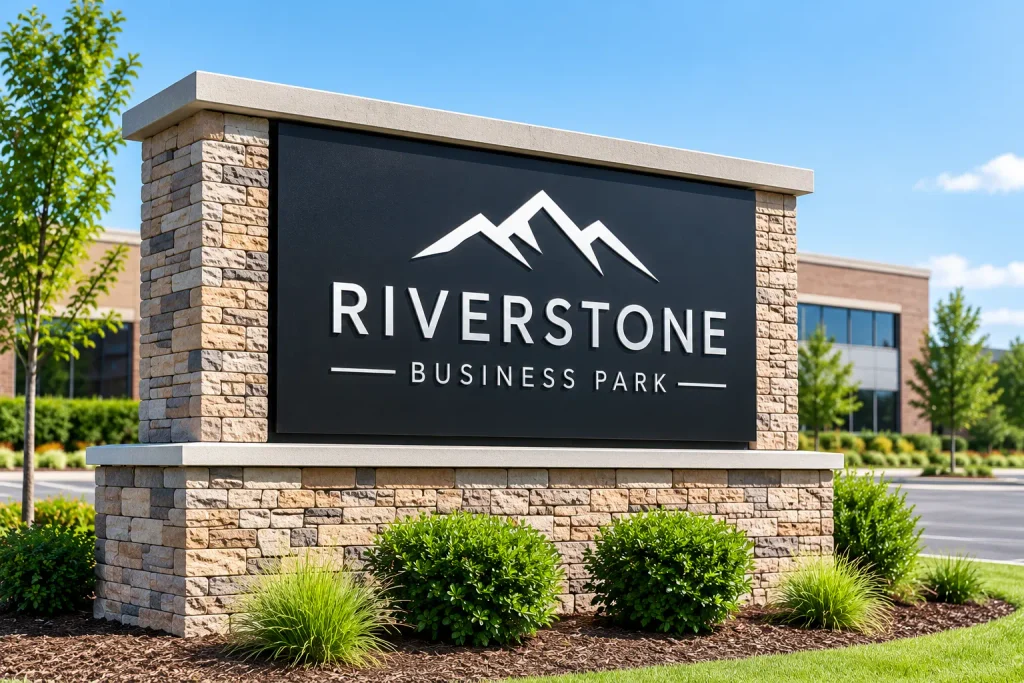

A monument sign is a low-profile, ground-mounted freestanding sign—typically 4 to 8 feet (1.2 to 2.4 meters) tall—positioned near a property entrance, curb cut, or street setback line so approaching drivers and pedestrians can identify a location at eye level. Unlike tall highway pylon signs elevated on steel poles, Custom Monument & Freestanding Business Signs sit on a solid architectural base made of welded aluminum, masonry, brick, stone, or poured concrete. They can be built as non-illuminated dimensional structures, internally lit LED cabinets, CNC-routed push-through acrylic monuments, or multi-tenant plaza directories.

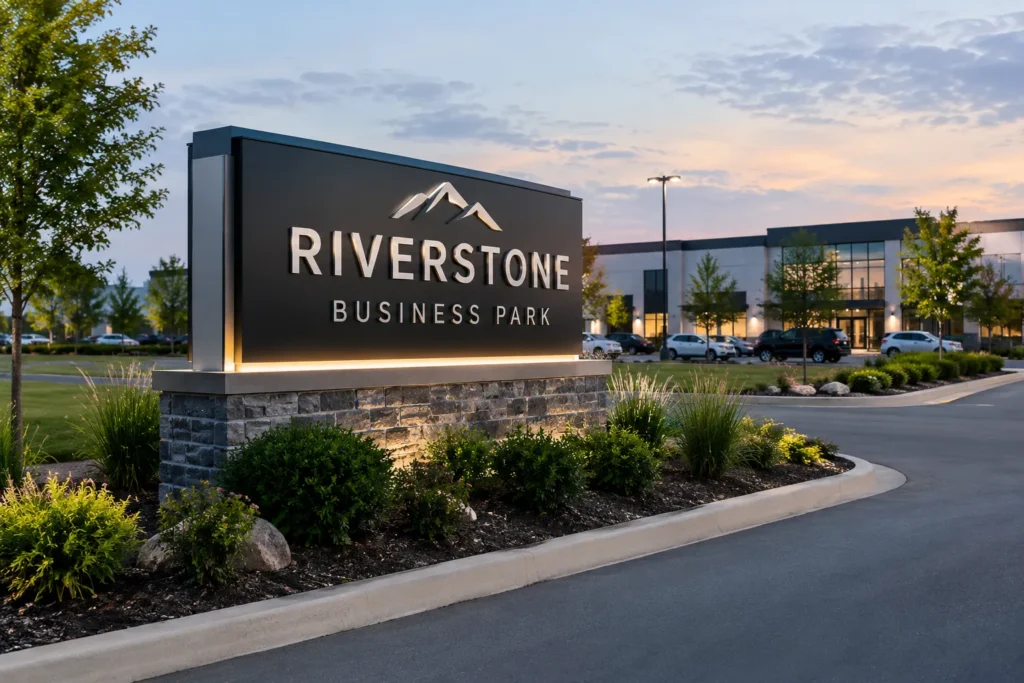

Concept visualization: A double-sided illuminated aluminum and stone monument sign at a commercial driveway entrance at dusk, displaying bold push-through acrylic lettering and high-contrast street address numbers while the main building sits set back across the parking lot.
Monument Sign vs. Pylon Sign vs. Storefront Wall Sign: How to Choose
Commercial buyers frequently ask whether they need a ground-level monument sign, an elevated pylon sign, or a building-mounted wall sign. Each structure solves a different sightline and zoning challenge across your exterior signage system:
| Sign Structure | Typical Mounting Height | Primary Visibility Zone | Zoning & Code Profile | Best Commercial Application |
|---|---|---|---|---|
| Monument Sign | Ground-level, typically 4 to 8 ft (1.2 to 2.4 m) | Roadside curb cut & eye-level approach (100 to 300+ ft) | Widely favored by municipal zoning boards and planned business parks | Set-back buildings, medical clinics, corporate campuses, retail plazas, schools |
| Pylon / Pole Sign | Elevated on structural steel poles, 15 to 40+ ft (4.5 to 12+ m) | Long-range highway & arterial corridors (300 to 800+ ft) | Strictly regulated or restricted in many suburban and historic zoning districts | Highway interchanges, fuel centers, regional shopping centers, drive-thrus |
| Storefront Wall Sign | Mounted directly to building fascia (10 to 25+ ft) | Direct building-front & parking lot confirmation | Governed by linear building frontage and landlord sign criteria | Street-facing retail storefronts, restaurants, inline shopping plaza suites |
When you need both: If your building is set back behind a parking lot or angled away from the road, a monument sign at the curb tells drivers “Turn here,” while channel letters or blade signs on the building tell them “Park and enter here.”
The 6 Core Types of Commercial Monument Signs
Modern monument signs are engineered in six primary configurations depending on your architectural style, night-visibility needs, and tenant count:
1. Fabricated Aluminum Architectural Monument Signs
The workhorse of modern commercial properties, a fabricated aluminum monument uses a heavy-duty welded internal aluminum tube frame clad in precision-formed aluminum skins and finished in baked exterior powder coat or industrial polyurethane. Because aluminum never rusts and weighs a fraction of solid stone, it can be fabricated in our facility as a complete structural unit, crated safely, and bolted directly onto your concrete foundation pad.
2. CNC Push-Through Illuminated Monument Signs
For brands that want crisp nighttime readability without a glaring white plastic box face, a push-through illuminated monument routes the logo and typography out of the solid aluminum face so thick, precision-milled acrylic letters protrude through the metal. Internal commercial LEDs illuminate only the 3D acrylic letter faces and edges, maintaining a refined dark or colored metal background day and night.
3. Masonry, Brick & Stone-Base Hybrid Monuments
When a business park, medical center, or municipality requires the monument base to match the brick, stacked stone, or architectural concrete of the main building, a hybrid monument is often the smartest engineering choice. Your local mason or general contractor builds the concrete footing and masonry base on site, and UrbanSign Works manufactures the precision-fitted upper LED illuminated monument cabinet or 3D dimensional letter assembly that mounts onto the masonry structure.
4. Multi-Tenant Directory Monument Signs
Shopping centers, medical plazas, and multi-building office complexes need a monument that identifies the property name at the top while providing organized, replaceable panels for individual tenants below. Our Multi-Tenant Directory Monument Signs use engineered retainer tracks or removable aluminum divider panels so property managers can update a single suite’s panel when leases turn over without rebuilding the entire sign.
5. Non-Illuminated 3D Dimensional & Laser-Cut Metal Monuments
In daytime-only office parks, residential communities, or strict dark-sky jurisdictions where internal cabinet illumination is prohibited, monument signs pair an architectural aluminum or masonry wall with raised Custom 3D Dimensional Letters or Custom Laser-Cut Metal Signs. If nighttime visibility is still desired, these signs can be paired with subtle, code-compliant ground landscape floodlights or top-mounted linear wash lighting.
6. Post-and-Panel Freestanding Entrance & Wayfinding Monuments
For secondary driveway entrances, shipping and receiving gates, campus directional decision points, or budget-conscious single-tenant sites, a Single-Tenant Post-and-Panel Freestanding Sign mounts a rigid double-sided aluminum cabinet or panel between two heavy square aluminum or steel posts set into concrete footings.

Six-panel isometric comparison showing how commercial monument signs differ across fabricated aluminum cabinets, push-through acrylic illumination, stone-base hybrids, multi-tenant directories, 3D dimensional letter walls, and post-and-panel structures.
How a Commercial Monument Sign Is Engineered from the Ground Up
Because a freestanding monument sign stands fully exposed to high winds, freeze-thaw ground movement, lawn maintenance equipment, and year-round UV and rain, its internal structure matters far more than surface paint. Under our factory-direct manufacturing model (“We build them. We do not resell.”), commercial monument cabinets are engineered around five structural and electrical principles:
1. Internal Welded Structural Skeleton & Anchor-Bolt Base
An exterior monument sign should never be an empty sheet-metal box held together only by pop rivets. Inside the outer aluminum skin sits a welded structural tube frame engineered with base mounting plates or internal sleeves that slide over or bolt onto steel anchor bolts embedded in your below-grade concrete foundation pier.

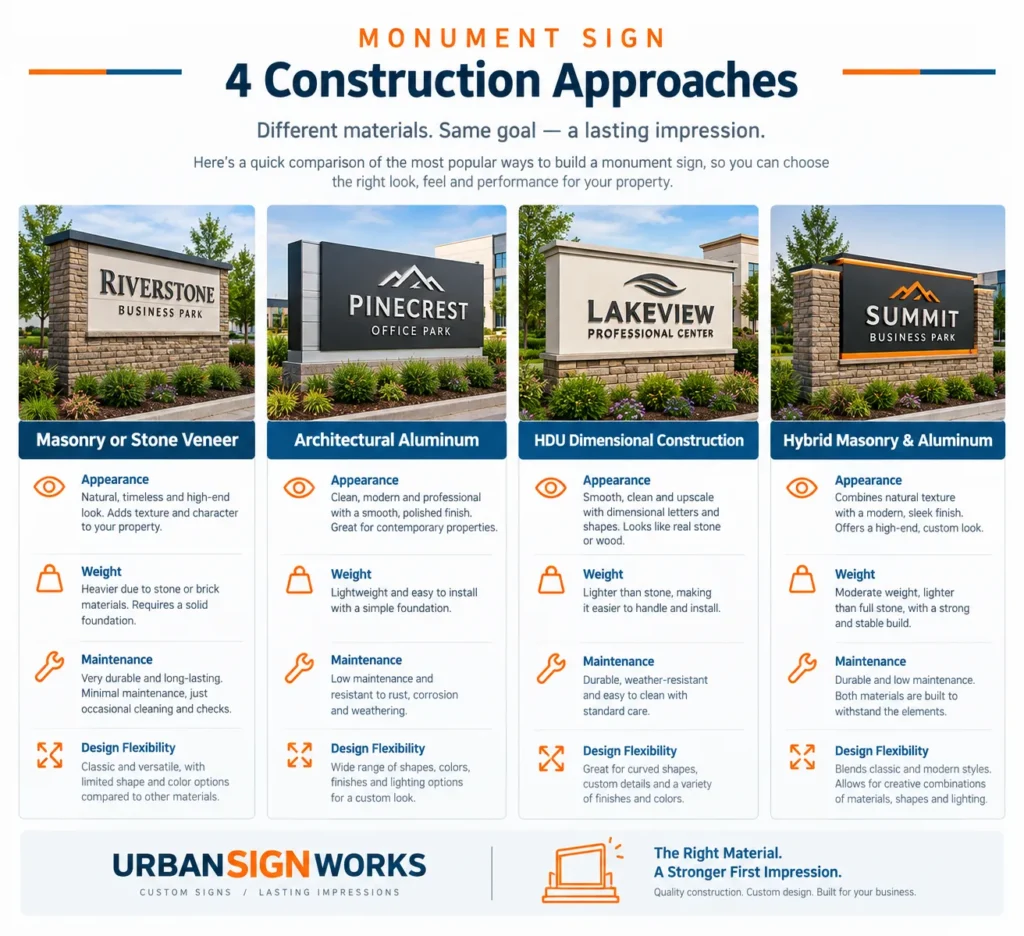

2. Corrosion-Resistant Aluminum vs. Untreated Steel vs. Coated Foam
- Fabricated Commercial Aluminum: Our primary recommendation for permanent commercial monuments. Aluminum offers an exceptional strength-to-weight ratio, will not rust or bleed orange stains onto concrete bases, and stands up to accidental bumps from landscaping trimmers far better than brittle materials.
- Masonry / Brick / Stone Base + Aluminum Upper Cabinet: Combines the ground-level impact resistance and traditional permanence of site-laid masonry with the crisp, serviceable internal LED engineering of a factory-built aluminum upper cabinet.
- High-Density Urethane (HDU) / Hard-Coated Architectural Foam: Useful for carved or sandblasted heritage plaques and decorative caps, but requires a durable polyurea hard coat and should be kept elevated above mower/trimmer strike zones.

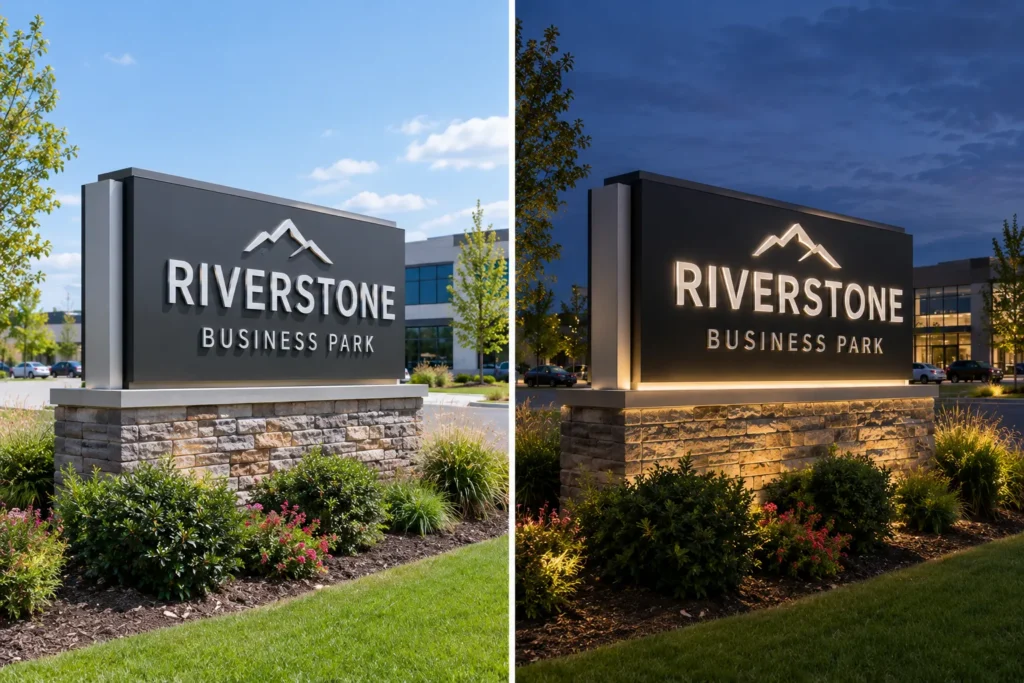

3. Even Optical LED Illumination & Service Access
Double-sided illuminated monument cabinets use internal commercial LED modules arranged on a backplane or perimeter matrix matched to the cabinet depth so the acrylic faces or push-through letters glow evenly without hot spots or dark bands. Just as important, the cabinet is designed with removable service access panels or hinged/bolted retainers so a technician can inspect internal power supplies years down the road without dismantling the base.
4. Weather Sealing, Ventilation & Bottom Weep Holes
Ground-level signs experience heavy splash-back from rain, snow accumulation, and irrigation sprinklers. Exterior monument cabinets use gasketed sign faces, sealed electrical conduit entries through the base, and bottom gravity drainage weep holes so internal condensation can escape harmlessly instead of pooling inside the cabinet.
5. UV-Stable Powder Coating & Vandal/Impact Protection
Because monument signs sit within arm’s reach of sidewalks and parking lots, exterior metal skins undergo chemical pretreatment and baked exterior-grade powder coating or automotive-grade polyurethane finishing. In high-traffic or storm-prone locations, impact-resistant polycarbonate faces or thick push-through cast acrylic letters protect the sign from hail and airborne debris.

Engineering breakdown of a commercial monument sign: (1) below-grade concrete pier and welded internal frame, (2) double-sided push-through LED cabinet cross-section with bottom weep holes, and (3) masonry-and-aluminum hybrid assembly.
View Interactive Vector SVG Diagram (Scalable Reference)
Sizing, Sightlines, Setbacks & the Driveway “Clear Sight Triangle”
A monument sign that looks impressive in a close-up rendering can still fail on the street—or get rejected by your municipal zoning examiner—if three site geometry rules are overlooked:
1. Size Primary Lettering for Approach Traffic Speed (Plus Street Address Numbers)
Drivers approaching your property entrance have only 3 to 5 seconds to read your monument sign and signal a safe turn. Apply the commercial legibility baseline of at least 1 inch (2.5 cm) of capital letter height for every 20 to 25 feet (6 to 7.5 meters) of viewing distance:
- 25–30 mph Local Street (150–200 ft approach): Minimum 6 to 8 inches for primary brand lettering.
- 35–45 mph Collector or Arterial Road (250–350 ft approach): Minimum 10 to 15 inches for primary brand lettering.
- High-Contrast Street Address Numbers: Always include bold, 6-to-10-inch street address numerals on the monument cabinet or cap. Many municipal fire and zoning codes mandate visible street numbers on ground signs to aid emergency responders and first-time visitors.
2. Keep the Base Above Landscaping, Snow & Splash Zones
Never place tenant names or primary copy on the bottom 18 to 24 inches (45 to 60 cm) of a monument sign. Once seasonal flowers grow in, snow plows push banks against the curb, or cars splash road grime onto the base, low-mounted lettering becomes unreadable. Design a dedicated architectural base or plinth that elevates your lowest line of text into a clean sightline.
3. Respect Property-Line Setbacks & the Intersection “Clear Sight Triangle”
Municipal zoning ordinances across the United States, Europe, and Australia enforce two critical placement boundaries at property entrances:
- Right-of-Way & Property-Line Setback: Monument signs must be installed on private property behind the public right-of-way line, commonly requiring a 5-to-15-foot setback from the street curb or sidewalk edge (and clear of underground utility easements).
- Driveway Clear Sight Triangle (Visibility Triangle): Traffic engineering codes prohibit tall, opaque structures inside the triangular sightline zone at the corner of a driveway and intersecting street so drivers pulling out of your parking lot have an unobstructed view of oncoming cars, cyclists, and pedestrians. Placing your monument slightly back from the curb apex—or keeping its height within code limits—prevents permit rejections.

Left: Elevation comparison of a ground-level Monument Sign, highway Pylon Sign, and Storefront Wall Sign. Right: Top-down plan view showing how a monument sign is positioned behind the driveway Clear Sight Triangle so exiting drivers can see oncoming traffic.
View Interactive Vector SVG Diagram (Scalable Reference)
What Drives Monument Sign Cost? (And How to Separate Factory vs. Site Scope)
Monument sign quotes vary more widely than almost any other signage category—not because the sign cabinet itself is mysterious, but because some quotes cover only the fabricated upper structure while others bundle local excavation, concrete pouring, masonry, and municipal permitting. Because every monument is custom-built to your site dimensions and wind zone, UrbanSign Works provides itemized, scope-verified quotes rather than generic one-size-fits-all price lists.
1. Five Fabrication Variables That Shape Your Monument Quote
- Overall Dimensions & Single-Sided vs. Double-Sided Configuration: A single-sided monument placed parallel to a wall or one-way approach uses half the face machining and internal LED graphics of a double-sided monument built to capture two-way traffic.
- Structure & Cladding Architecture: A self-contained powder-coated aluminum monument cabinet is lighter to ship and faster to install on a concrete pad than a custom multi-part structure requiring on-site brick or stone masonry integration.
- Illumination & Face Treatment: Non-illuminated 3D dimensional letters represent the simplest electrical scope; internal LED diffused cabinets sit in the middle; CNC-routed push-through acrylic faces and halo-lit channel letters mounted to the monument face involve higher machining precision.
- Multi-Tenant Directory Engineering: Adding replaceable tenant panels with individual light baffles and retainer tracks increases fabrication detail compared to a single-tenant brand monument.
- Commercial Crating & Freight Logistics: Because monument structures are large, three-dimensional assemblies, reinforced wood crating and insured LTL/freight carrier handling are tailored to your delivery destination across the United States, Europe, or Australia.

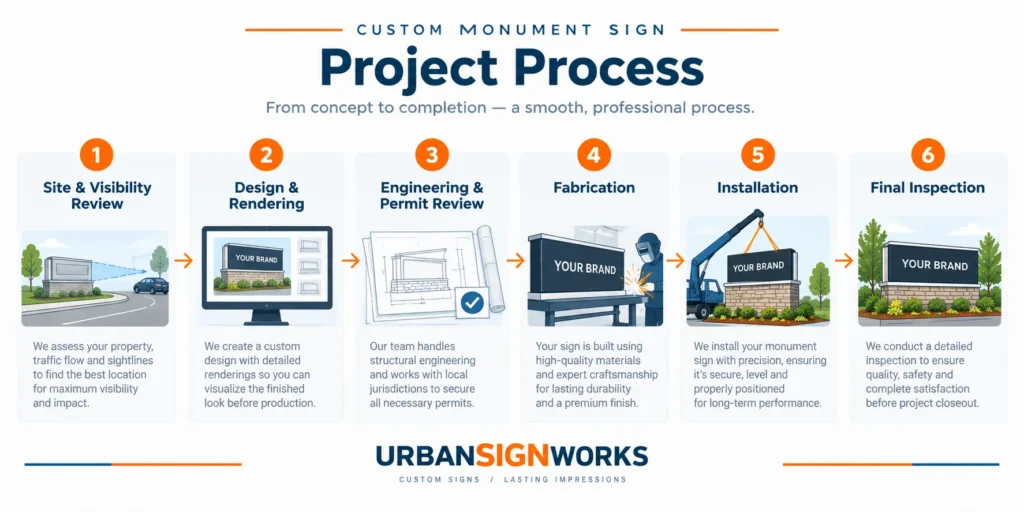

2. Clear Scope Separation: What UrbanSign Works Builds vs. Local Site Work
To keep your project budget predictable and eliminate middleman markups, we clearly separate factory-direct manufacturing from local ground trades:
| Project Phase | UrbanSign Works Factory-Direct Scope | Local Property / Contractor / Trade Scope |
|---|---|---|
| Design & Pre-Production | Sign-type guidance, free 3D mockup (targeted within two business days of a complete brief), material/lighting recommendations, and shop drawings showing cabinet dimensions and mounting geometry. | Providing site photos, boundary/setback survey details, landlord sign criteria, and vector logo files. |
| Permits & Structural Engineering | Supplying product specification and fabrication shop drawings to support your permit packet. | Municipal sign/building permit filing and locally licensed P.E. structural wind-load or footing stamps where required by local code. |
| Fabrication & Quality Control | Managed factory-direct fabrication (fabrication begins after final approval), LED/driver assembly, powder-coat finishing, and crating—backed by a qualifying 2-year manufacturing warranty. | Reviewing and approving final 3D mockup and technical specification prior to production release. |
| Foundation, Electrical & Installation | Insured freight delivery coordination plus mounting templates/hardware for your local contractor. Installation is handled by your local licensed contractor — we do not install or coordinate installation. | 811/utility locates, trenching primary electrical conduit, pouring the concrete footing/masonry base, crane/rigging placement, and final electrical hookup by a licensed electrician. |
Important Engineering & Compliance Boundary: UrbanSign Works is a factory-direct custom commercial signage manufacturer serving the United States, Europe, and Australia. We do not manufacture government signage or regulated road/traffic control markers, nor do we automatically include municipal permit filing, sealed structural engineering calculations, excavation, or primary electrical trenching unless expressly specified in a written quote. Always verify underground utilities and local footing requirements with licensed local professionals before digging.
How Much Does a Monument Sign with High-Brightness LED Cost?
High-brightness LED makes a monument sign readable from the road, even in daylight and at approach speed, because the light output is strong enough to hold contrast against sunlit surroundings. Choose commercial LED modules rated for outdoor use, with IP65 weatherproofing so rain, dust, and splash-back cannot reach the drivers and wiring inside the cabinet. A monument sign with high brightness LED pricing starts from $2,900, to approved design. Like every UrbanSign Works monument sign, it is engineered as a permanent ground structure, with a welded frame, a concrete footing, and service access built in from the start.
7 Costly Monument Sign Mistakes to Avoid
- Placing Primary Text in the Bottom 18 Inches (The Mower & Snow-Bank Trap): Lettering placed too close to the ground disappears behind summer turfgrass, ornamental shrubs, or winter snowbanks. Keep all copy elevated above a dedicated base plinth.
- Violating the Driveway Clear Sight Triangle: Installing a tall, wide monument right at the curb corner where drivers pull out into traffic blocks visibility and can trigger a municipal code violation. Verify your city’s setback and sight-triangle rules before pouring concrete.
- Forgetting the Street Address Number: Drivers who spot your business name at 40 mph also rely on your street number to confirm their GPS arrival—and many local codes require address numerals on freestanding signs.
- Overcrowding Multi-Tenant Panels with Phone Numbers & Taglines: A roadside monument is not a brochure. Limit each tenant panel to the core brand name or two-word category (e.g., DENTAL, URGENT CARE, PHARMACY, CPA) so drivers can read it in three seconds.
- Pouring the Concrete Footing Before Finalizing Sign Dimensions & Conduit: Anchor-bolt spacing and electrical conduit stub-outs must match the internal frame of the fabricated monument cabinet. Finalize your sign shop drawings first, then pour the foundation.
- Using Untreated Mild Steel That Rust-Stains Stone Bases: Unsealed carbon steel brackets or cabinets oxidize in rain and bleed orange rust streaks down concrete or masonry bases. Specify welded aluminum construction and stainless hardware.
- Comparing an Uninstalled Cabinet Price Against a Full Site Quote: When comparing proposals, make sure you separate the cost of the sign cabinet from excavation, concrete foundation work, and electrical trenching so you are comparing apples to apples.

Concept visualization: Comparing an undersized, low-contrast sign hidden behind driveway shrubs (left) against a street-calibrated, high-contrast illuminated monument sign with bold push-through lettering and clear street numbers (right).
Pre-Order Buyer Checklist: 10 Steps Before You Approve a Monument Sign
Run through this interactive 10-point checklist before releasing your monument sign for fabrication and site preparation:
See Your Custom Monument Sign at Your Property Entrance Before We Build It
Planning a ground-mounted monument sign is much easier when you can see how the cabinet height, stone or aluminum base, push-through lettering, and tenant panels look in proportion to your actual driveway entrance. Whether you need a single-tenant architectural monument, an illuminated LED monument, or a multi-tenant plaza directory, our factory-direct team helps you get the specification right from day one.
- Share Your Property Brief: Send a daytime photo of your driveway or curb entrance, approximate desired height and width, your logo file (vector
.AI,.EPS,.SVG, or.PDFpreferred), and whether you need single-sided, double-sided, or multi-tenant panels. - Review Your Free 3D Mockup & Itemized Quote: We deliver a free 3D mockup targeted within two business days of receiving a complete brief, paired with material/lighting guidance and a transparent factory-direct quote.
- Approve & Build with Direct Accountability: Once you approve the final specification, fabrication begins, backed by our qualifying 2-year manufacturing warranty (subject to written warranty terms). Fabrication, crating, and insured freight delivery are clearly separated so your team can coordinate local permits and footing work smoothly. Installation is handled by your local licensed contractor — we do not install or coordinate installation.
Questions about multi-tenant panels, masonry base integration, or shipping? Email info@urbansignworks.com or call +1(337)3503804 (Perpetual Works LLC DBA UrbanSign Works • 30 N Gould St Ste R, Sheridan, WY 82801, USA).
how much do monument signs cost
A custom monument sign from UrbanSign Works starts from $2,900. The final price depends on size, materials, illumination and site scope — every quote is itemized, and your free 3D mockup comes with a firm price. Request My Free 3D Mockup & Quote
cost of led monument sign
An LED monument sign starts from $2,900 — high-brightness LED illumination included. The final price depends on size, materials and site scope — every quote is itemized, and your free 3D mockup comes with a firm price. Request My Free 3D Mockup & Quote
How much does a custom monument sign cost?
A custom monument sign starts from $2,900. The final price depends on size, materials, illumination and site scope — every quote is itemized, and your free 3D mockup comes with a firm price. Request My Free 3D Mockup & Quote
business monument sign cost
A business monument sign starts from $2,900. The final price depends on size, materials, illumination and site scope — every quote is itemized, and your free 3D mockup comes with a firm price. Request My Free 3D Mockup & Quote
Frequently Asked Questions About Commercial Monument Signs
What is the difference between a monument sign and a pylon sign?
A monument sign is a low-profile structure (typically 4 to 8 feet tall) mounted flush to a ground-level concrete or masonry base to greet drivers and pedestrians at eye level near a property entrance. A pylon sign (or pole sign) is elevated 15 to 40+ feet in the air on structural steel poles to capture long-distance highway traffic. Many municipalities restrict tall pole signs while encouraging architectural monument signs.
What materials are best for a commercial monument sign?
For commercial longevity and low maintenance, welded architectural aluminum with a baked powder-coat or automotive-grade polyurethane finish is the benchmark choice—either as a complete ground-to-top structure or as an illuminated upper cabinet mounted onto a site-built brick, natural stone, or poured-concrete base. For illuminated faces, cast acrylic (including CNC-routed push-through acrylic letters) or impact-resistant polycarbonate provides crisp day-and-night readability.
Do I need a permit and concrete foundation for a monument sign?
In almost all municipalities across the United States, Europe, and Australia, yes. Because a monument sign is a permanent freestanding structure subject to wind loads and right-of-way setback rules, cities typically require a sign or building permit and a below-grade concrete footing. UrbanSign Works supplies detailed product specifications and shop drawings to support your local permit application and foundation contractor.
Can tenant panels on a multi-tenant monument sign be changed later?
Yes. When you order a Multi-Tenant Directory Monument Sign, we engineer the cabinet with individual removable retainer tracks or modular aluminum/acrylic tenant panels. When a new business moves into your plaza or office building, you can swap out that single tenant panel without disturbing the rest of the monument structure.
How long does a custom monument sign take to manufacture, and who installs it?
We begin with a free 3D mockup targeted within two business days of receiving your complete site brief. Once you approve the final design and technical specification, fabrication begins (excluding transit time — free nationwide delivery in the US within 7 days; international transit confirmed at quote stage by destination). Your monument ships in a reinforced commercial crate across the United States, Europe, or Australia for installation by your local contractor/sign installer. Installation is handled by your local licensed contractor — we do not install or coordinate installation.
How much does a breakaway monument sign cost?
Breakaway is not a standard monument sign type. UrbanSign Works monument signs are permanent, ground-engineered structures, and standard monument fabrication starts from $2,900, to approved design. If your site needs a sign that can be relocated or removed, that requirement is quoted individually — request a free 3D mockup and an itemized quote.
