Wayfinding Signs: How to Design a Navigation System People Can Actually Follow
Wayfinding is not a collection of arrows. It is the system people use to understand where they are, choose the right route, confirm that they are still on it, recognize their destination and find their way back out.
Wayfinding Is a Navigation System, Not a Sign Type
Directional signs are part of wayfinding, but they are not the whole system. Modern wayfinding combines environmental cues, consistent place names, maps or orientation information, directional signs, destination identification and—in some facilities—digital tools.
Current Queensland Health wayfinding guidance describes wayfinding as a coordinated system that integrates intuitive environmental cues, informative signage and digital tools. It also emphasizes early planning, accessibility, user engagement and consistent naming. That is a much stronger model than installing signs only after people start getting lost.
Orientation
Where am
i?
The visitor needs enough context to understand the building, campus, floor, zone or entrance they are using.
Direction
Which way do I go?
At each meaningful choice, the system should make the next move obvious without presenting unnecessary options.
Confirmation
Am I still on the right route?
Long corridors, elevators, parking structures and campus paths often need reassurance before the next major decision.
Good wayfinding reduces the number of decisions a visitor has to invent
If a visitor must stop, scan the environment, guess which department name is current, ask a staff member and then backtrack, the problem is not simply “missing signage.” The route, terminology, placement or information hierarchy is failing.

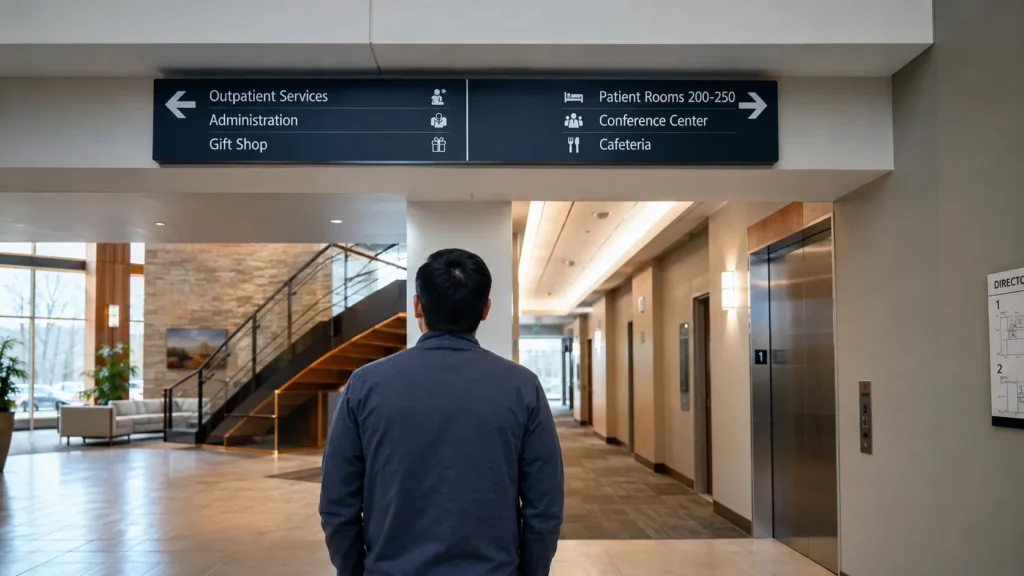

First-time visitor navigating a complex facility

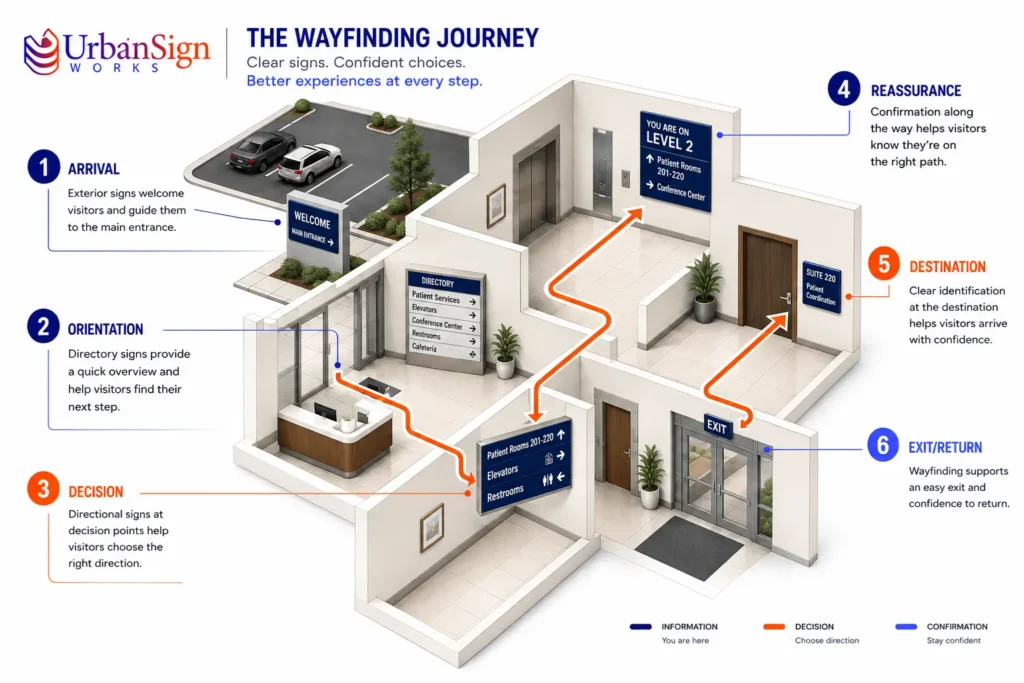

The Six-Stage Wayfinding Journey
The easiest way to design or audit a system is to follow one real trip in sequence. A visitor should be able to complete all six stages without the information chain breaking.
Arrival
Orientation
Decision
Reassurance
One weak stage can damage the whole experience. A perfect directory does not help if the parking entrance uses a different building name. A strong directional sign does not help if it appears after the visitor has already passed the turn.
Arrival-to-destination route map
The Main Types of Wayfinding Signs—and the Job Each One Should Do
| Wayfinding element | Primary job | Typical locations | Common failure |
|---|---|---|---|
Arrival / entrance signs |
Tell visitors they reached the correct property, building or entrance |
Road entrance, parking entry, building approach |
Entrance names do not match appointment or website language |
Directional signs |
Tell people which route to take |
Intersections, corridor forks, elevator exits, campus paths |
Placed before or after the actual decision point instead of at it |
Identification signs |
Confirm a room, department, building or destination |
Doors, suites, departments, buildings |
Destination name differs from the terms used on earlier signs |
Directories |
Provide orientation and destination lookup |
Main lobbies, elevator banks, multi-tenant entrances |
Too much information, stale tenant names or no “you are here” context |
Maps / orientation panels |
Help people understand spatial relationships |
Campuses, malls, hospitals, large complexes |
Map orientation conflicts with the direction the viewer is facing |
Reassurance signs |
Confirm that a visitor is still on the correct route |
Long corridors, parking structures, campus walks |
System goes silent for too long between decisions |
Parking / vehicular wayfinding |
Guide drivers before they become pedestrians |
Property roads, garages, drop-off areas |
Pedestrian wayfinding starts only after the visitor has parked incorrectly |
Regulatory / informational signs |
Explain rules, access, hours or operational information |
Entrances, service areas, controlled zones |
Mixed with directions so densely that neither message is clear |

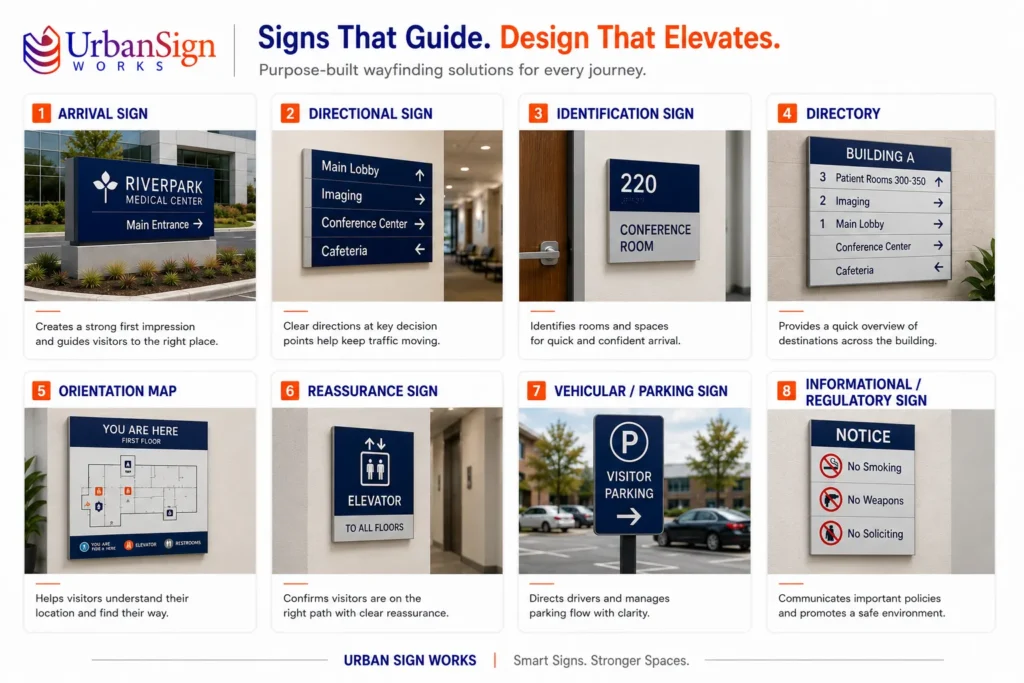

Eight wayfinding sign families in context
Put Guidance Where the Visitor Has to Make a Decision
Decision points are where a route changes or uncertainty increases: property entrances, parking choices, building entries, lobby thresholds, corridor intersections, elevator exits, stair landings and transitions between buildings.
Current institutional wayfinding guidance emphasizes the complete journey and key decision points. The practical lesson is simple: guidance should appear where the visitor must choose or confirm a route.
Too early
The instruction is forgotten
A sign that gives a direction long before the relevant turn can become disconnected from the decision.
Too late
The visitor has already committed
Signs placed after a fork create backtracking and make the environment feel harder than it actually is.

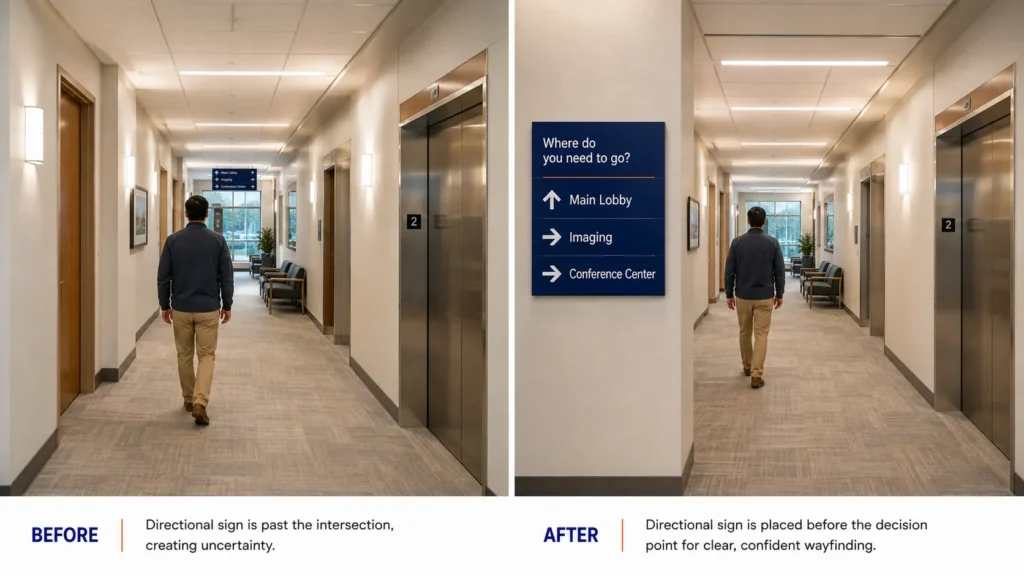

Weak vs corrected corridor decision point
Wayfinding Design: Clarity Comes Before Decoration
A wayfinding system should feel like one language. Visitors should not have to relearn colors, arrows, terms or visual hierarchy as they move through the property.
1. Use one destination name everywhere
If a clinic is called “Diagnostic Imaging” on the website, “Radiology” in the parking garage, “Imaging Services” in the lobby and “MRI/CT” on the floor, the system has created four possible destinations. Choose a naming convention and control it across signs, directories, maps, appointment instructions and digital touchpoints.
2. Keep messages short
Directional signs should support a decision, not become a directory at every intersection. Group destinations only when the grouping helps the visitor choose the next route.
3. Build a visual hierarchy
Destination, direction, supporting information and branding should not compete at equal weight. The eye needs a clear first read.
4. Use symbols where they genuinely reduce language load
Recognizable symbols can support parking, elevators, restrooms and accessibility, but unfamiliar custom icons can create another thing the visitor must decode.
5. Design signs as part of the environment
Lighting, wall color, sightlines, ceiling height, glazing, architectural columns, landscaping and other visual clutter can all reduce sign visibility.
Brand the system without hiding the information
Brand color and typography can make a property feel cohesive, but wayfinding is not the place to sacrifice contrast or readability for decorative consistency. Use branding as the visual wrapper around a navigation system whose primary job is clarity.
Original naming-control framework

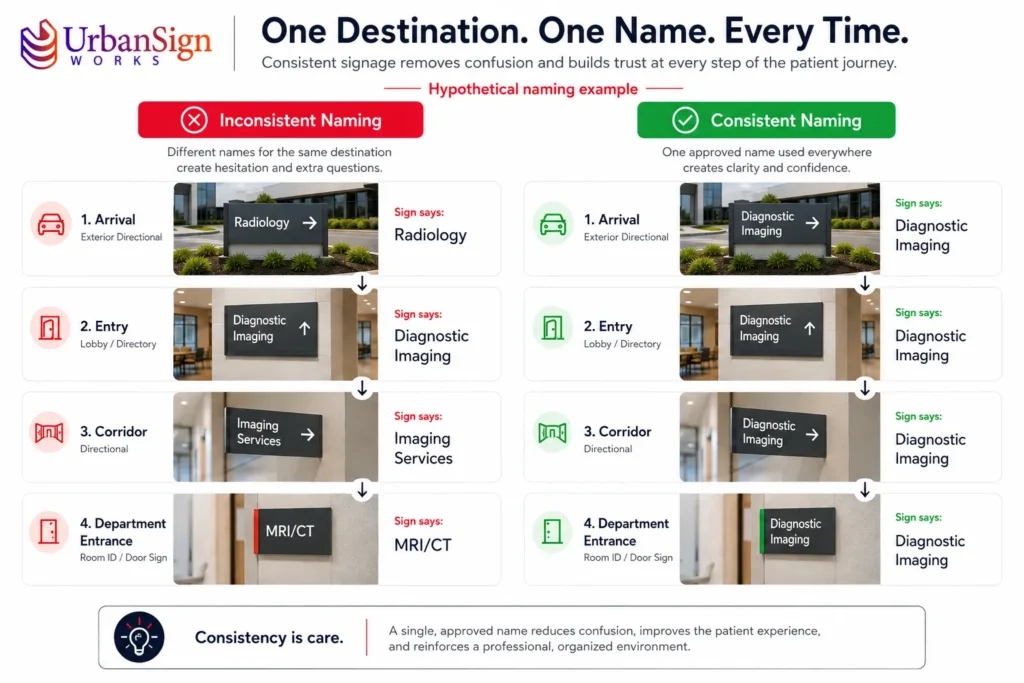

One destination, four conflicting names—and the corrected system
Accessibility: Directional Signs and Room Identification Are Not the Same Requirement
For U.S. projects, accessibility requirements depend on what the sign does. The U.S. Access Board explains that signs providing direction to or information about interior spaces must meet visual requirements where they are provided, but are not required to be tactile. Permanent room or space identification signs, where provided, are subject to tactile and visual requirements, including raised characters and braille. Federal exemptions include certain directories, building addresses, occupant names and company names/logos.
| Federal ADA sign category | Visual requirements | Tactile / braille | Practical implication |
|---|---|---|---|
Arrival / entrance signs |
Yes, where covered/provided |
Generally yes |
Room identification needs different treatment from ordinary directional copy |
Directional / informational signs |
Yes, where provided |
No federal tactile requirement for this category |
Design for visual legibility, contrast and placement |
Required accessibility symbols |
Specific symbol/finish requirements apply |
Depends on sign context |
Use the required symbol and verify the applicable provision |
Directories / company names / occupant names |
Federal exemptions apply to listed content categories |
Federal tactile exemption applies to listed categories |
Do not assume every piece of text on a wayfinding system needs braille |
The Access Board also specifies installation requirements for tactile signs, including a baseline range of 48 to 60 inches above the finished floor or ground. Exact applicability, state/local requirements, mounting conditions and project-specific compliance should be verified before production.

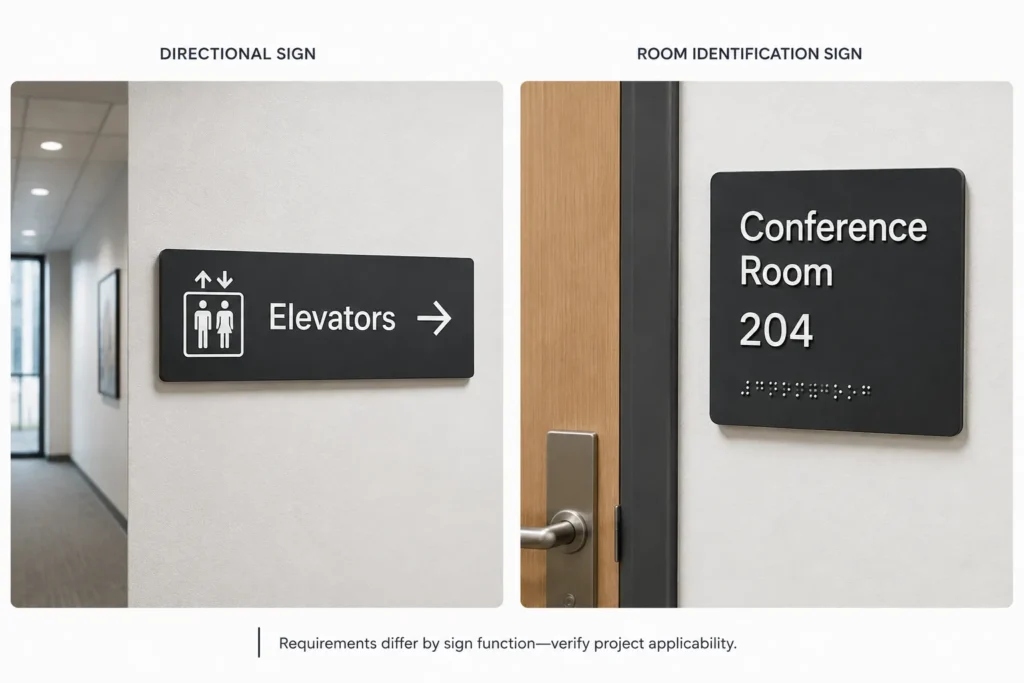

Directional vs permanent-room identification
Where Wayfinding Systems Matter Most
Healthcare
Hospitals and clinics
Multiple entrances, departments, elevators and appointment destinations make consistency and reassurance especially important.
Corporate
Office campuses
Visitors need to distinguish buildings, tenants, reception points, meeting spaces and parking routes.
Education
Schools and universities
Large campuses require clear building identity, route hierarchy and event/visitor orientation.
Retail
Malls and shopping centers
Wayfinding supports parking, entrances, tenant discovery, amenities and movement between levels.
Hospitality
Hotels and resorts
Guests navigate reception, rooms, elevators, meeting facilities, parking and amenities without staff escort.
Mixed-use
Commercial developments
Vehicular and pedestrian systems must work together across multiple tenants and destinations.
The exact sign family changes by property, but the planning principle stays the same: test complete journeys for first-time users, not only the places the owner already knows are important.

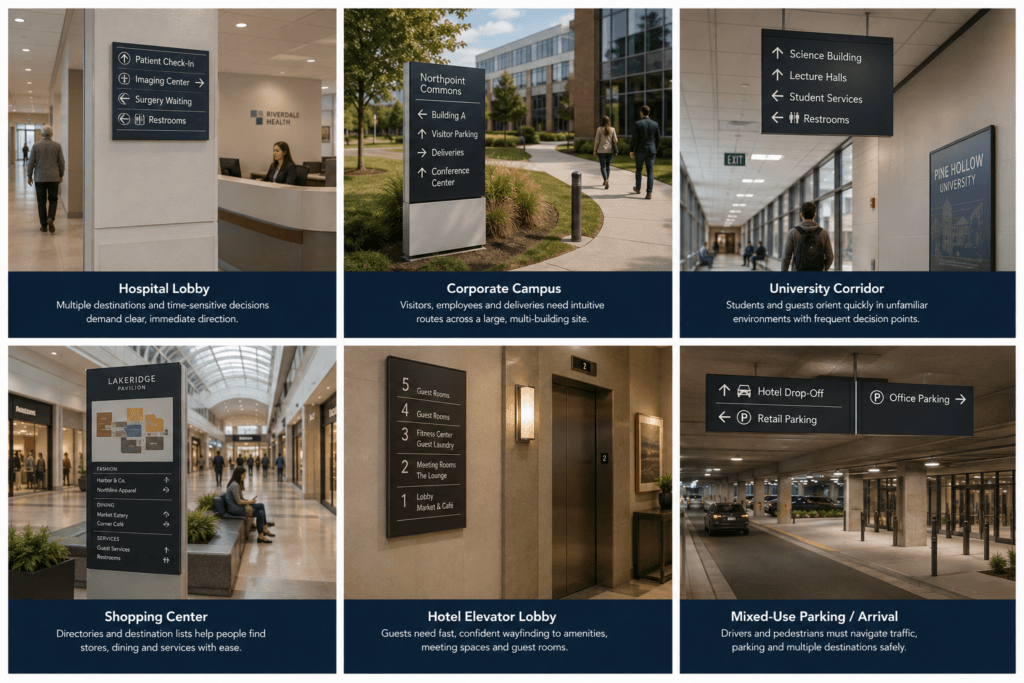

Six environments, six navigation problems
How to Audit a Wayfinding System Before Buying More Signs
When visitors keep getting lost, the instinct is often to add signs. That can make the environment worse. Audit the route first.
Step 1: Choose representative journeys
Examples: visitor parking → main reception; main entrance → department; reception → restroom; loading entrance → service desk; appointment destination → exit.
Step 2: Walk the route as a first-time visitor
Do not rely on staff who already know the property. At every stage, record what the visitor can actually see and what terminology appears.
Step 3: Capture every failure
- No information at a decision point
- Too many destinations on one sign
- Inconsistent destination name
- Arrow appears ambiguous
- Sign is hidden by architecture, vehicles, doors or glare
- Reassurance disappears on a long route
- Destination identification is weak or missing
- Exit/return route is not obvious
- Accessibility requirements are not correctly classified
- Temporary paper signs reveal a persistent system problem
| Observed problem | Likely root cause | Likely root cause |
|---|---|---|
Visitors miss a turn |
Sign is late, hidden or visually disconnected from the decision |
Correct placement/sightline before adding duplicate signs |
People ask whether two departments are the same |
Inconsistent nomenclature |
Standardize destination names across every touchpoint |
Directory is hard to use |
Information overload or weak hierarchy |
Organize by user task, floor or zone and simplify scanning |
Visitors lose confidence on long routes |
No reassurance |
Add route confirmation at logical intervals or transitions |
Paper arrows keep appearing |
Permanent system no longer matches operations |
Identify recurring operational change and update the system architecture |
Wayfinding Audit Gates

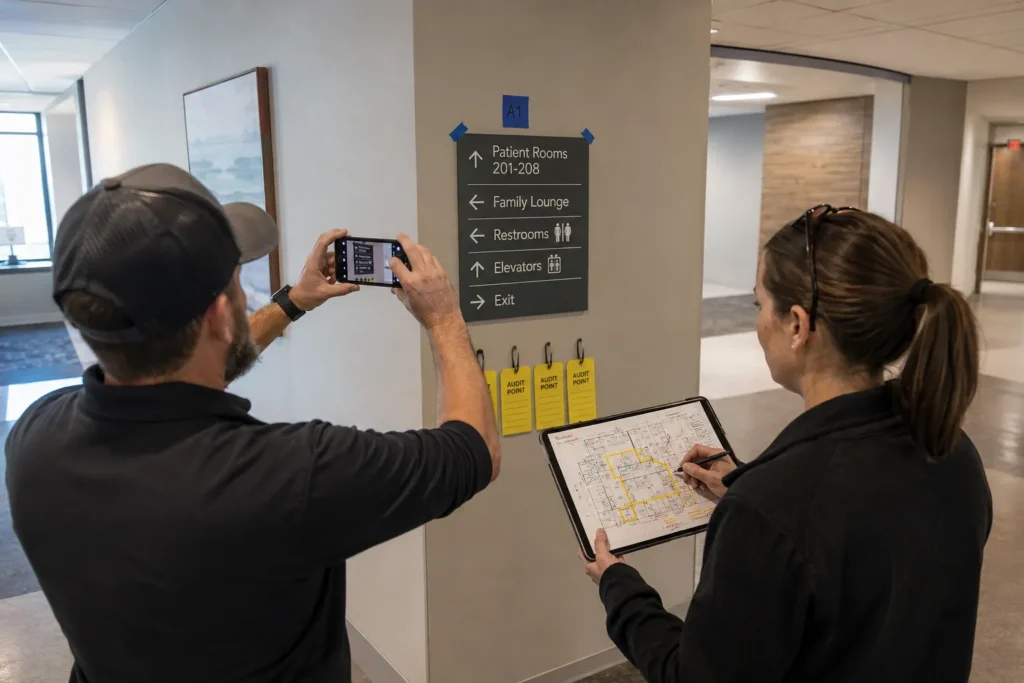

Wayfinding audit in progress
What to Include in a Wayfinding Signage Brief
Fabrication should begin only after the navigation logic is stable. A quote-ready brief should give the sign provider enough information to price the actual system rather than guessing from a sign count.
- Current floor plans or site plans
- List of official destination names
- Representative visitor journeys
- Parking and building-entrance hierarchy
- Decision points and route transitions
- Existing sign inventory and photos
- Required interior/exterior sign families
- Brand standards and approved colors/typefaces
- Accessibility scope and responsible compliance reviewer
- Mounting surfaces and known site restrictions
- Material/finish expectations
- Modularity requirements for future tenant/department changes
- Permit/landlord/engineering responsibilities where applicable
- Installation access and working-hour constraints
- Acceptance test: which journeys must work after installation?
The procurement question that changes the conversation
“Show us how this sign package supports the tested visitor journeys—not just where each sign will be mounted.”
That shifts the project from buying objects to buying a functioning navigation system.

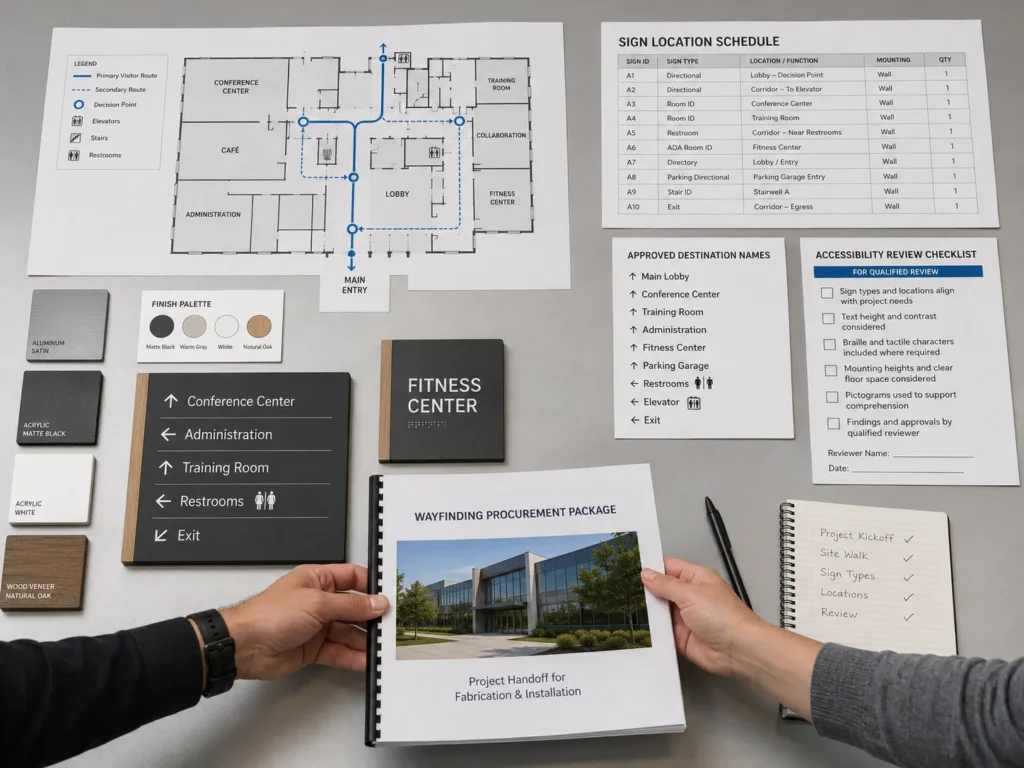

Route map, sign schedule and material samples
Frequently Asked Questions About Wayfinding Signs
What is the difference between directional signs and wayfinding signs?
A directional sign tells a visitor which way to go at a particular point. Wayfinding is the broader navigation system that can include arrival signs, identification signs, directories, maps, directional signs, reassurance signs, parking guidance and environmental cues.
Where should directional signs be placed?
They should be placed where visitors need information to make or confirm a route decision, with enough visibility and time to understand the message before acting. Placement should be tested from the actual approach path.
Do all wayfinding signs need braille?
No. Under the federal ADA Standards, directional and informational signs are subject to visual requirements where provided but are not required to be tactile. Permanent room or space identification signs are a different category and generally carry tactile requirements. Project-specific federal, state and local applicability should be verified.
What makes a wayfinding sign effective?
Effective signs use clear naming, readable visual hierarchy, appropriate contrast, concise messaging, consistent symbols and strategic placement. More importantly, they connect logically with the signs before and after them.
Should wayfinding signs match the company brand?
They can reflect brand colors, materials and typography as long as brand styling does not reduce readability, accessibility or navigation clarity.
Should a wayfinding system include maps?
Maps are useful when spatial orientation genuinely helps the user, especially on campuses or in large multi-level facilities. They should not be added automatically if a simpler directional system can guide the journey more efficiently.
How do you know whether a wayfinding system works?
Test representative journeys with people who do not already know the facility. Record hesitation, missed turns, questions, backtracking and inconsistent terminology, then correct the root causes and retest.
